IN74HC165A Datasheet - IK Semiconductor

IN74HC165A 8-Bit Parallel-in Serial-Out Shift Register

TECHNICAL DATA 8-Bit Serial or Parallel-Input/ Serial-Output Shift Register High-Performance Silicon-Gate CMOS The IN74HC165A is identical in pinout to the LS/ALS165. The device inputs are compatible with standard CMOS outputs; with pullup resistors, they are compatible with LS/ALSTTL outputs. This device is an 8-bit shift register with complementary outputs from the last stage. Data may be loaded into the register either in parallel or in serial form. When the Serial Shift/ Parallel Load input.

IN74HC165A_IKSemiconductor.pdf

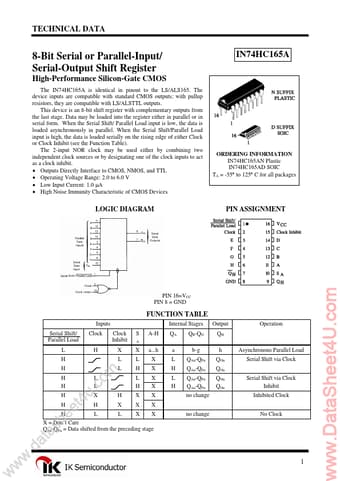

IN74HC165A Datasheet Preview — Preview of IN74HC165A PDF

Datasheet Details

Part number:

IN74HC165A

Manufacturer:

IK Semiconductor

File Size:

261.68 KB

Description:

8-bit parallel-in serial-out shift register.
