IN74HC166A - 8-Bit Parallel-in Serial-Out Shift Register

IN74HC166A Description

TECHNICAL DATA IN74HC166A 8-Bit Serial or Parallel-Input/ Serial-Output Shift Register High-Performance Silicon-Gate CMOS The IN74HC166A is identica.

IN74HC166A Applications

* of any voltage higher than maximum rated voltages to this high-impedance circuit. For proper operation, VIN and VOUT should be constrained to the range GND≤(VIN or VOUT)≤VCC. Unused inputs must always be tied to an appropriate logic voltage level (e. g. , either GND or VCC). Unused outputs must be lef

📥 Download Datasheet

Preview of IN74HC166A PDF

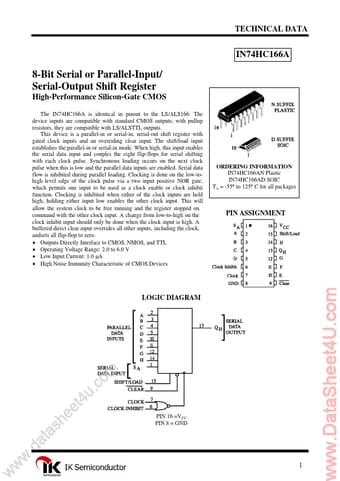

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
IN74HC166A
Manufacturer
IK Semiconductor
File Size
269.57 KB
Datasheet
IN74HC166A_IKSemiconductor.pdf
Description
8-Bit Parallel-in Serial-Out Shift Register
