IN74HC21A Dual 4-Input Positive-AND Gate

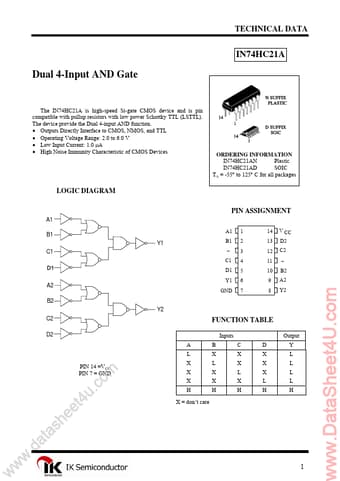

TECHNICAL DATA IN74HC21A Dual 4-Input AND Gate The IN74HC21A is high-speed Si-gate CMOS device and is pin compatible with pullup resistors with low power Schottky TTL (LSTTL). The device provide the Dual 4-input AND function. Outputs Directly Interface to CMOS, NMOS, and TTL Operating Voltage Range: 2.0 to 6.0 V Low Input Current: 1.0 µA High Noise Immunity Characteristic of CMOS Devices ORDERING INFORMATION IN74HC21AN Plastic IN74HC21AD SOIC TA = -55°.

IN74HC21A_IKSemiconductor.pdf

Preview of IN74HC21A PDF
IN74HC21A Datasheet Preview Page 2 IN74HC21A Datasheet Preview Page 3

Datasheet Details

Part number:

IN74HC21A

Manufacturer:

IK Semiconductor

File Size:

248.45 KB

Description:

Dual 4-input positive-and gate.
