IN74HC30A Datasheet - IK Semiconductor

IN74HC30A 8-Input Positive NAND Gate

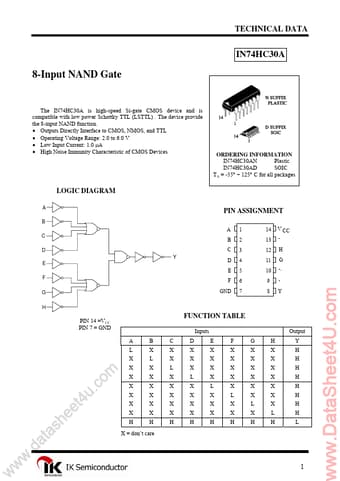

TECHNICAL DATA IN74HC30A 8-Input NAND Gate The IN74HC30A is high-speed Si-gate CMOS device and is compatible with low power Schottky TTL (LSTTL) . The device provide the 8-input NAND function. Outputs Directly Interface to CMOS, NMOS, and TTL Operating Voltage Range: 2.0 to 6.0 V Low Input Current: 1.0 µA High Noise Immunity Characteristic of CMOS Devices ORDERING INFORMATION IN74HC30AN Plastic IN74HC30AD SOIC TA = -55° ÷ 125° C for all packages LOGIC.

IN74HC30A Datasheet (251.63 KB)

Preview of IN74HC30A PDF
IN74HC30A Datasheet Preview Page 2 IN74HC30A Datasheet Preview Page 3

Datasheet Details

Part number:

IN74HC30A

Manufacturer:

IK Semiconductor

File Size:

251.63 KB

Description:

8-input positive nand gate.
