IN74HC323A, 8-Bit Universal Shift/Storage Register

TECHNICAL DATA IN74HC323A 8-Bit Bidirectional Universal Shift Register with Parallel I/O High-Performance Silicon-Gate CMOS The IN74HC323A is identi.

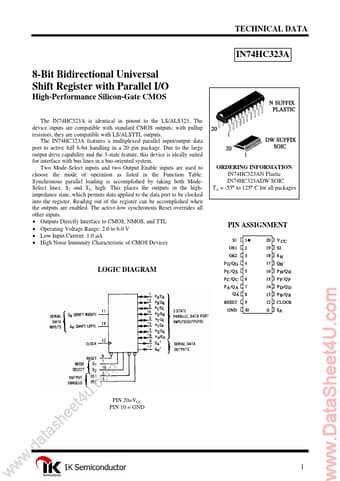

 datasheet Preview Page 1 from Datasheet4u.com

IN74HC323A_IKSemiconductor.pdf

Preview of IN74HC323A PDF

Datasheet Details

Part number:

IN74HC323A

Manufacturer:

IK Semiconductor

File Size:

287.31 KB

Description:

8-Bit Universal Shift/Storage Register

Features

* a multiplexed parallel input/output data port to active full 8-bit handling in a 20 pin package. Due to the large output drive capability and the 3-state feature, this device is ideally suited for interface with bus lines in a bus-oriented system. Two Mode-Select inputs and two Output Enable inputs

Applications

* of any voltage higher than maximum rated voltages to this high-impedance circuit. For proper operation, VIN and VOUT should be constrained to the range GND≤(VIN or VOUT)≤VCC. Unused inputs must always be tied to an appropriate logic voltage level (e. g. , either GND or VCC). Unused outputs must be lef
