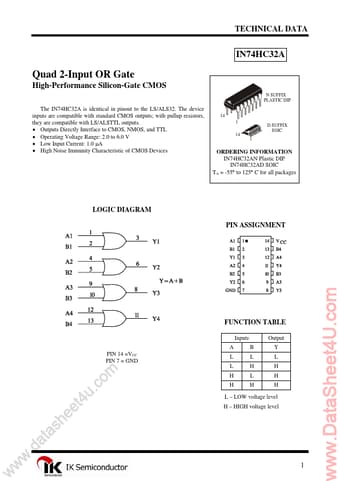

IN74HC32A
TECHNICAL DATA
Quad 2-Input OR Gate
High-Performance Silicon-Gate CMOS
N SUFFIX PLASTIC DIP
The IN74HC32A is identical in pinout to the LS/ALS32. The device inputs are patible with standard CMOS outputs; with pullup resistors, they are patible with LS/ALSTTL outputs.
- Outputs Directly Interface to CMOS, NMOS, and TTL
- Operating Voltage Range: 2.0 to 6.0 V
- Low Input Current: 1.0 µA
- High Noise Immunity Characteristic of CMOS Devices
14 1 14 1 D SUFFIX SOIC
ORDERING INFORMATION IN74HC32AN Plastic DIP IN74HC32AD SOIC TA = -55° to 125° C for all packages
LOGIC DIAGRAM PIN ASSIGNMENT
FUNCTION TABLE
Inputs A PIN 14 =VCC PIN 7 = GND L L H H B L H L H Output Y L H H H w w w
.d h s a t a ee
. u t4 m o c
- LOW voltage level H
- HIGH voltage level
..
MAXIMUM RATINGS-
Symbol VCC VIN VOUT IIN IOUT ICC PD Tstg TL
- Parameter DC Supply Voltage (Referenced to GND) DC Input Voltage (Referenced to GND) DC Output Voltage (Referenced to GND) DC Input...
