IN74HC374A Datasheet - IK Semiconductor

IN74HC374A - Octal D-type Flip-Flop

TECHNICAL DATA IN74HC374A Octal 3-State Noninverting D Flip-Flop High-Performance Silicon-Gate CMOS The IN74HC374A is identical in pinout to the LS/ALS374.

The device inputs are compatible with standard CMOS outputs; with pullup resistors, they are compatible with LS/ALSTTL outputs.

Data meeting the setup and hold time is clocked to the outputs with the rising edge of the Clock.

The Output Enable input does not affect the states of the flip-flops, but when Output Enable is high, the outputs ar

IN74HC374A_IKSemiconductor.pdf

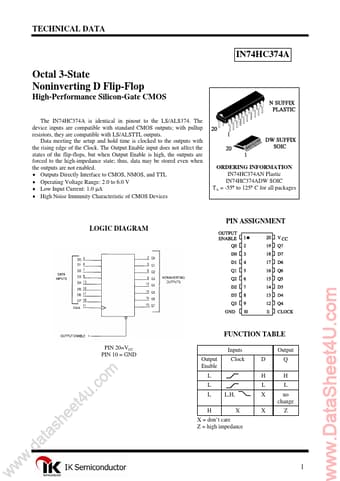

Preview of IN74HC374A PDF
IN74HC374A Datasheet Preview Page 2 IN74HC374A Datasheet Preview Page 3

Datasheet Details

Part number:

IN74HC374A

Manufacturer:

IK Semiconductor

File Size:

244.31 KB

Description:

Octal d-type flip-flop.
