IN74HC4015A Dual 4-Bit Static Shift Register

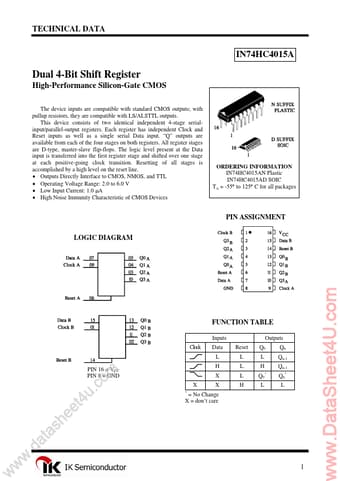

TECHNICAL DATA IN74HC4015A Dual 4-Bit Shift Register High-Performance Silicon-Gate CMOS The device inputs are compatible with standard CMOS outputs; with pullup resistors, they are compatible with LS/ALSTTL outputs. This device consists of two identical independent 4-stage serialinput/parallel-output registers. Each register has independent Clock and Reset inputs as well as a single serial Data input. “Q” outputs are available from each of the four stages on both registers. All register stages.

IN74HC4015A_IKSemiconductor.pdf

Preview of IN74HC4015A PDF
IN74HC4015A Datasheet Preview Page 2 IN74HC4015A Datasheet Preview Page 3

Datasheet Details

Part number:

IN74HC4015A

Manufacturer:

IK Semiconductor

File Size:

259.80 KB

Description:

Dual 4-bit static shift register.
