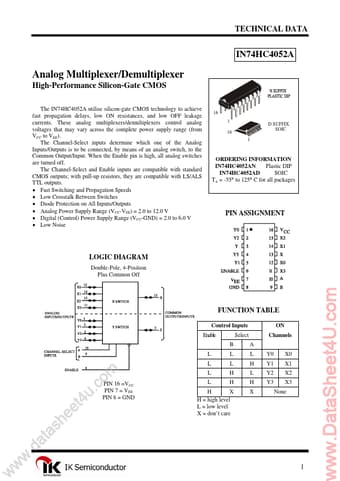

IN74HC4052A
TECHNICAL DATA
Analog Multiplexer/Demultiplexer
High-Performance Silicon-Gate CMOS
The IN74HC4052A utilise silicon-gate CMOS technology to achieve fast propagation delays, low ON resistances, and low OFF leakage currents. These analog multiplexers/demultiplexers control analog voltages that may vary across the plete power supply range (from VCC to VEE). The Channel-Select inputs determine which one of the Analog Inputs/Outputs is to be connected, by means of an analog switch, to the mon Output/Input. When the Enable pin is high, all analog switches are turned off. The Channel-Select and Enable inputs are patible with standard CMOS outputs; with pull-up resistors, they are patible with LS/ALS TTL outputs.
- Fast Switching and Propagation Speeds
- Low Crosstalk Between Switches
- Diode Protection on All Inputs/Outputs
- Analog Power Supply Range (VCC-VEE) = 2.0 to 12.0 V
- Digital (Control) Power Supply Range (VCC-GND) = 2.0 to 6.0 V
- Low Noise
16 1 16 1 D SUFFIX...
