IN74HC4094A Datasheet - IK Semiconductor

IN74HC4094A 8-Bit Shift and Bus Register

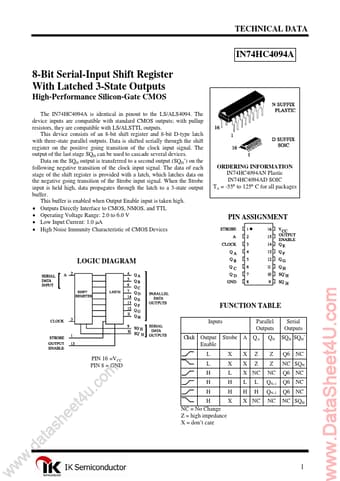

TECHNICAL DATA IN74HC4094A 8-Bit Serial-Input Shift Register With Latched 3-State Outputs High-Performance Silicon-Gate CMOS The IN74HC4094A is identical in pinout to the LS/ALS4094. The device inputs are compatible with standard CMOS outputs; with pullup resistors, they are compatible with LS/ALSTTL outputs. This device consists of an 8-bit shift register and 8-bit D-type latch with three-state parallel outputs. Data is shifted serially through the shift register on the positive going transit.

IN74HC4094A_IKSemiconductor.pdf

Preview of IN74HC4094A PDF
IN74HC4094A Datasheet Preview Page 2 IN74HC4094A Datasheet Preview Page 3

Datasheet Details

Part number:

IN74HC4094A

Manufacturer:

IK Semiconductor

File Size:

299.87 KB

Description:

8-bit shift and bus register.
