IN74HC534A Datasheet - IK Semiconductor

IN74HC534A - Octal D-Type Flip-Flop

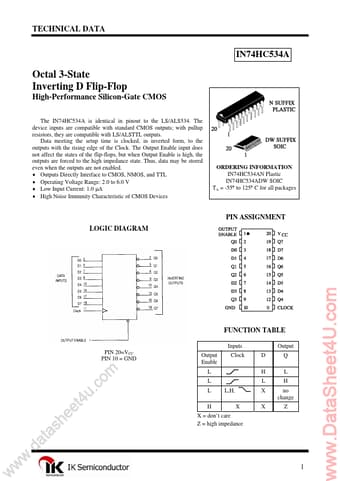

TECHNICAL DATA IN74HC534A Octal 3-State Inverting D Flip-Flop High-Performance Silicon-Gate CMOS The IN74HC534A is identical in pinout to the LS/ALS534.

The device inputs are compatible with standard CMOS outputs; with pullup resistors, they are compatible with LS/ALSTTL outputs.

Data meeting the setup time is clocked, in inverted form, to the outputs with the rising edge of the Clock.

The Output Enable input does not affect the states of the flip-flops, but when Output Enable is high, the out

IN74HC534A_IKSemiconductor.pdf

Preview of IN74HC534A PDF
IN74HC534A Datasheet Preview Page 2 IN74HC534A Datasheet Preview Page 3

Datasheet Details

Part number:

IN74HC534A

Manufacturer:

IK Semiconductor

File Size:

244.73 KB

Description:

Octal d-type flip-flop.
