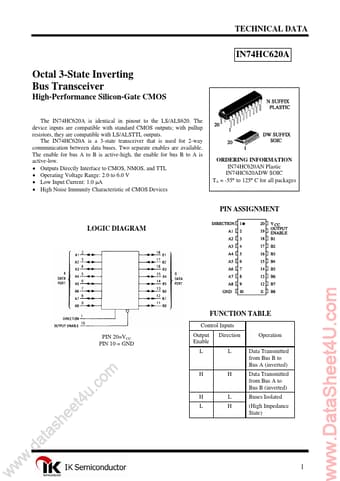

IN74HC620A
TECHNICAL DATA
Octal 3-State Inverting Bus Transceiver
High-Performance Silicon-Gate CMOS
The IN74HC620A is identical in pinout to the LS/ALS620. The device inputs are patible with standard CMOS outputs; with pullup resistors, they are patible with LS/ALSTTL outputs. The IN74HC620A is a 3-state transceiver that is used for 2-way munication between data buses. Two separate enables are available. The enable for bus A to B is active-high, the enable for bus B to A is active-low.
- Outputs Directly Interface to CMOS, NMOS, and TTL
- Operating Voltage Range: 2.0 to 6.0 V
- Low Input Current: 1.0 µA
- High Noise Immunity Characteristic of CMOS Devices
ORDERING INFORMATION IN74HC620AN Plastic IN74HC620ADW SOIC TA = -55° to 125° C for all packages
PIN ASSIGNMENT LOGIC DIAGRAM
FUNCTION TABLE
Control Inputs PIN 20=VCC PIN 10 = GND Output Enable L Direction L Operation Data Transmitted from Bus B to Bus A (inverted) Data Transmitted from Bus A to Bus B (inverted) Buses Isolated...
