IN74HC652A Octal Bus Transceiver/Register

TECHNICAL DATA IN74HC652A Octal 3-State Bus Transceivers and D Flip-Flops High-Performance Silicon-Gate CMOS The IN74HC652A is identical in pinout to the LS/ALS652. The device inputs are compatible with standard CMOS outputs; with pullup resistors, they are compatible with LS/ALSTTL outputs. These devices consist of bus transceiver circuits, D-type flip-flop, and control circuitry arranged for multiplex transmission of data directly from the data bus or from the internal storage registers. Dir.

IN74HC652A_IKSemiconductor.pdf

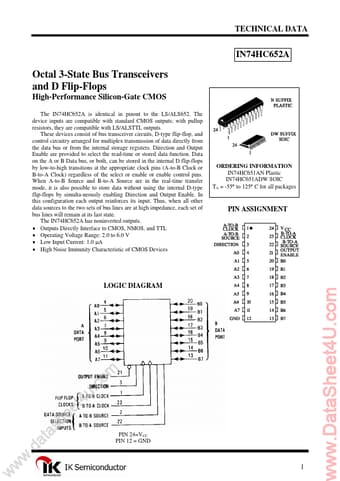

Preview of IN74HC652A PDF
IN74HC652A Datasheet Preview Page 2 IN74HC652A Datasheet Preview Page 3

Datasheet Details

Part number:

IN74HC652A

Manufacturer:

IK Semiconductor

File Size:

429.80 KB

Description:

Octal bus transceiver/register.
