IN74HC75A Quad Bistable Latch

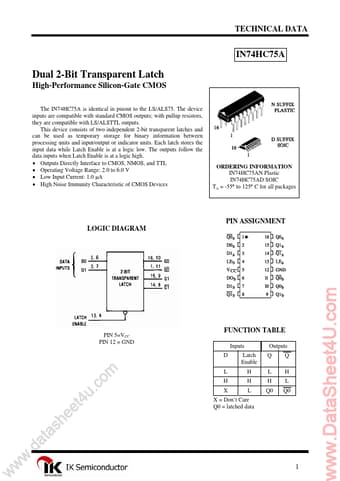

TECHNICAL DATA IN74HC75A Dual 2-Bit Transparent Latch High-Performance Silicon-Gate CMOS The IN74HC75A is identical in pinout to the LS/ALS75. The device inputs are compatible with standard CMOS outputs; with pullup resistors, they are compatible with LS/ALSTTL outputs. This device consists of two independent 2-bit transparent latches and can be used as temporary storage for binary information between processing units and input/output or indicator units. Each latch stores the input data while .

IN74HC75A Datasheet (226.13 KB)

Preview of IN74HC75A PDF

Datasheet Details

Part number:

IN74HC75A

Manufacturer:

IK Semiconductor

File Size:

226.13 KB

Description:

Quad bistable latch.
