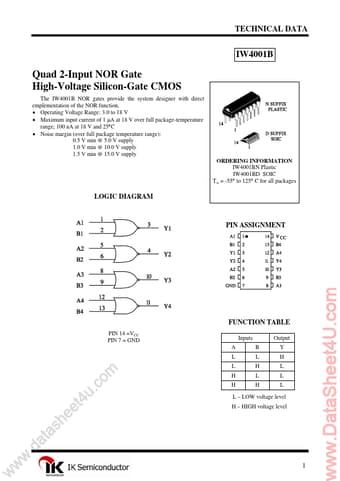

IW4001B
TECHNICAL DATA
Quad 2-Input NOR Gate High-Voltage Silicon-Gate CMOS
The IW4001B NOR gates provide the system designer with direct emplementation of the NOR function.
- Operating Voltage Range: 3.0 to 18 V
- Maximum input current of 1 µA at 18 V over full package-temperature range; 100 n A at 18 V and 25°C
- Noise margin (over full package temperature range): 0.5 V min @ 5.0 V supply 1.0 V min @ 10.0 V supply 1.5 V min @ 15.0 V supply ORDERING INFORMATION IW4001BN Plastic IW4001BD SOIC TA = -55° to 125° C for all packages
LOGIC DIAGRAM
PIN ASSIGNMENT
FUNCTION TABLE
PIN 14 =VCC PIN 7 = GND A L L H H Inputs B L H L H Output Y H L L L w w w
.d h s a t a ee
. u t4 m o c
- LOW voltage level H
- HIGH voltage level
..
MAXIMUM RATINGS-
Symbol VCC VIN IIN PD Ptot Tstg TL
- Parameter DC Supply Voltage (Referenced to GND) DC Input Voltage (Referenced to GND) DC Input Current, per Pin Power Dissipation in Still Air, Plastic DIP+ SOIC Package+ Power Dissipation...
