IW4002B Datasheet - IK Semiconductor

IW4002B Dual 4-Input NOR Gate

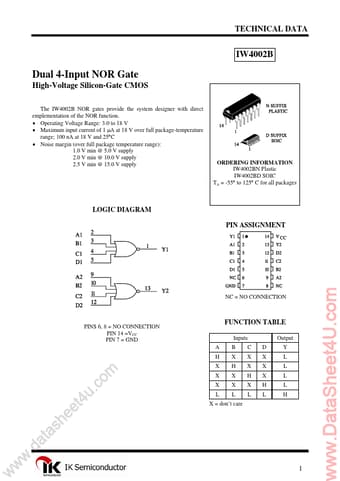

TECHNICAL DATA IW4002B Dual 4-Input NOR Gate High-Voltage Silicon-Gate CMOS The IW4002B NOR gates provide the system designer with direct emplementation of the NOR function. Operating Voltage Range: 3.0 to 18 V Maximum input current of 1 µA at 18 V over full package-temperature range; 100 nA at 18 V and 25°C Noise margin (over full package temperature range): 1.0 V min @ 5.0 V supply 2.0 V min @ 10.0 V supply 2.5 V min @ 15.0 V supply ORDERING INFORMATION IW4002B.

IW4002B Datasheet (221.07 KB)

Preview of IW4002B PDF

Datasheet Details

Part number:

IW4002B

Manufacturer:

IK Semiconductor

File Size:

221.07 KB

Description:

Dual 4-input nor gate.
