IW4015B - Dual 4-Bit Static Shift Register

IW4015B Description

TECHNICAL DATA IW4015B Dual 4-Stage Static Shift Register The IW4015B consists of two identical, independent, 4-stage serialinput/parallel-output re.

IW4015B Applications

* of any voltage higher than maximum rated voltages to this high-impedance circuit. For proper operation, VIN and VOUT should be constrained to the range GND≤(VIN or VOUT)≤VCC. Unused inputs must always be tied to an appropriate logic voltage level (e. g. , either GND or VCC). Unused outputs must be lef

📥 Download Datasheet

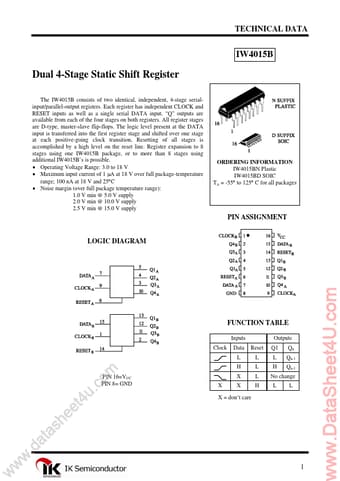

Preview of IW4015B PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
IW4015B
Manufacturer
IK Semiconductor
File Size
299.41 KB
Datasheet
IW4015B_IKSemiconductor.pdf
Description
Dual 4-Bit Static Shift Register
