IW4017B Datasheet - IK Semiconductor

IW4017B Decade Counter/Driver

TECHNICAL DATA Counter/Divider The IW4017B is 5-stage Johnson counter having 10 decoded outputs. Inputs include a CLOCK, a RESET, and a CLOCK INHIBIT signal. Schmitt trigger action in the CLOCK input circuit provides pulse shaping that allows unlimited clock input pulse rise and fall times. The counter is advanced one count at the positive clock signal transition if the CLOCK INHIBIT signal is low. Counter advancement via the clock line is inhibited when the CLOCK INHIBIT signal is high. A high.

IW4017B Datasheet (329.23 KB)

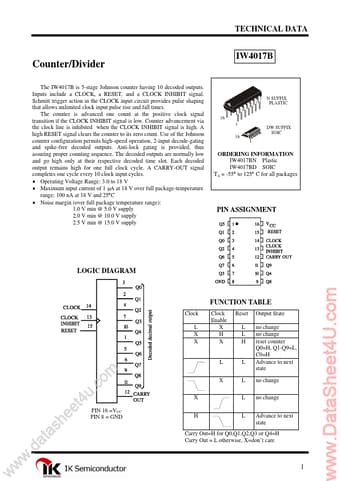

Preview of IW4017B PDF

Datasheet Details

Part number:

IW4017B

Manufacturer:

IK Semiconductor

File Size:

329.23 KB

Description:

Decade counter/driver.
