IW4024B Stage Ripple-Carry Binary Counter/Divider

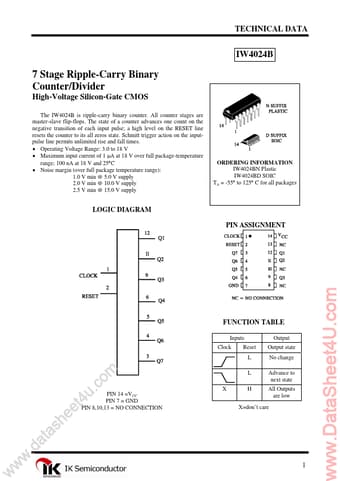

TECHNICAL DATA IW4024B 7 Stage Ripple-Carry Binary Counter/Divider High-Voltage Silicon-Gate CMOS The IW4024B is ripple-carry binary counter. All counter stages are master-slave flip-flops. The state of a counter advances one count on the negative transition of each input pulse; a high level on the RESET line resets the counter to its all zeros state. Schmitt trigger action on the inputpulse line permits unlimited rise and fall times. Operating Voltage Range: 3.0 to 18 V Ma.

IW4024B Datasheet (325.12 KB)

Preview of IW4024B PDF

Datasheet Details

Part number:

IW4024B

Manufacturer:

IK Semiconductor

File Size:

325.12 KB

Description:

Stage ripple-carry binary counter/divider.
