IW4028B BCD-to-Decimal Decoder

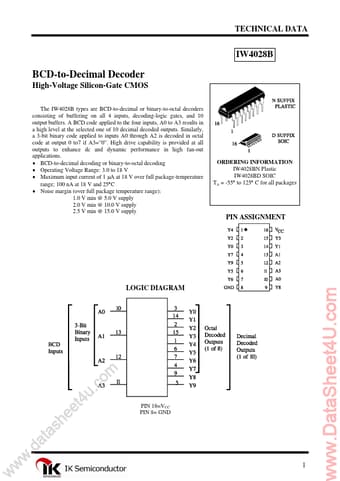

TECHNICAL DATA IW4028B BCD-to-Decimal Decoder High-Voltage Silicon-Gate CMOS The IW4028B types are BCD-to-decimal or binary-to-octal decoders consisting of buffering on all 4 inputs, decoding-logic gates, and 10 output buffers. A BCD code applied to the four inputs, A0 to A3 results in a high level at the selected one of 10 decimal decoded outputs. Similarly, a 3-bit binary code applied to inputs A0 through A2 is decoded in octal code at output 0 to7 if A3=“0”. High drive capability is provide.

IW4028B Datasheet (309.20 KB)

Preview of IW4028B PDF

Datasheet Details

Part number:

IW4028B

Manufacturer:

IK Semiconductor

File Size:

309.20 KB

Description:

Bcd-to-decimal decoder.
