IW4040B Datasheet - IK Semiconductor

IW4040B 12-Bit Binary Counter

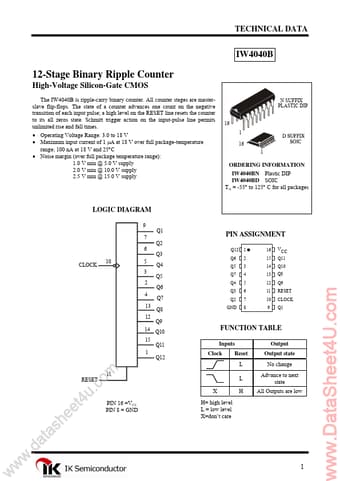

TECHNICAL DATA IW4040B 12-Stage Binary Ripple Counter High-Voltage Silicon-Gate CMOS The IW4040B is ripple-carry binary counter. All counter stages are masterslave flip-flops. The state of a counter advances one count on the negative transition of each input pulse; a high level on the RESET line resets the counter to its all zeros state. Schmitt trigger action on the input-pulse line permits unlimited rise and fall times. Operating Voltage Range: 3.0 to 18 V Maximum input c.

IW4040B_IKSemiconductor.pdf

Preview of IW4040B PDF
IW4040B Datasheet Preview Page 2 IW4040B Datasheet Preview Page 3

Datasheet Details

Part number:

IW4040B

Manufacturer:

IK Semiconductor

File Size:

285.02 KB

Description:

12-bit binary counter.
