IW4042B Datasheet - IK Semiconductor

IW4042B - Quad Clocked D-Latch

TECHNICAL DATA IW4042B Quad Clocked «D» Latch High-Voltage Silicon-Gate CMOS IW4042B types contain four latch circuits, each strobed by a common clock.

Complementary buffered outputs are available from each circuit.

The impedance of the n- and p-channel output devices is balanced and all outputs are electrically identical.

Information present at the data input is transferred to outputs Q and Q during the CLOCK level which is programmed by the POLARITY input.

For POLARITY = 0 the transfer occur

IW4042B_IKSemiconductor.pdf

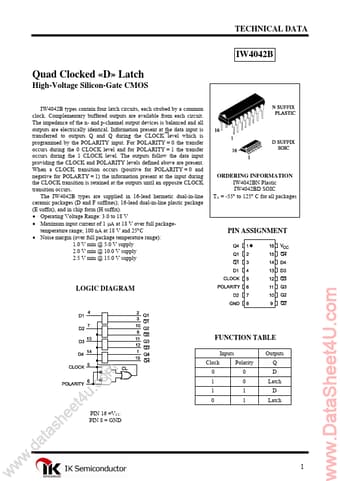

Preview of IW4042B PDF
IW4042B Datasheet Preview Page 2 IW4042B Datasheet Preview Page 3

Datasheet Details

Part number:

IW4042B

Manufacturer:

IK Semiconductor

File Size:

284.92 KB

Description:

Quad clocked d-latch.
