IW4043B - Quad NOR R-S Latch (3-State)

TECHNICAL DATA IW4043B Quad 3-State R/S Latches High-Voltage Silicon-Gate CMOS The IW4043B types are quad cross-coupled 3-state CMOS NOR latces.

Each latch has a separate Q output and individual SET and RESET inputs.

The Q outputs are controlled by a common ENABLE input.

A logic “1” or high on the ENABLE input connects the latch states to the Q outputs.

A logic “0” or low on the ENABLE input disconnects the latch states from the Q outputs, resulting in an open circuit condition on the Q output

IW4043B_IKSemiconductor.pdf

Preview of IW4043B PDF

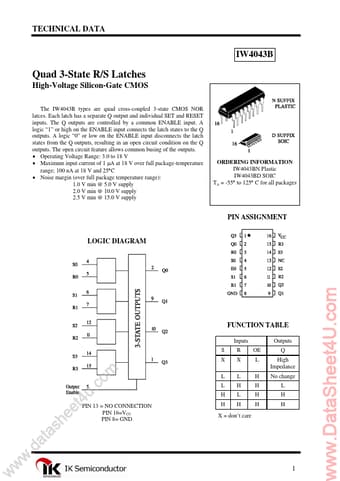

IW4043B Datasheet Preview Page 2 IW4043B Datasheet Preview Page 3
