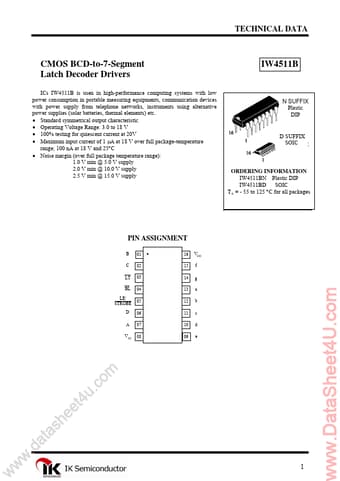

IW4511B
TECHNICAL DATA
CMOS BCD-to-7-Segment Latch Decoder Drivers
ICs IW4511B is usen in high-performance puting systems with low power consumption in portable measuring equipments, munication devices with power supply from telephone networks, instruments using alternative power supplies (solar batteries, thermal elements) etc.
- Standard symmetrical output characteristic
- Operating Voltage Range: 3.0 to 18 V
- 100% testing for quiescent current at 20V
- Maximum input current of 1 µA at 18 V over full package-temperature range; 100 n A at 18 V and 25°C
- Noise margin (over full package temperature range): 1.0 V min @ 5.0 V supply 2.0 V min @ 10.0 V supply 2.5 V min @ 15.0 V supply
N SUFFIX Plastic DIP
D SUFFIX SOIC
ORDERING INFORMATION IW4511BN Plastic DIP IW4511BD SOIC TA =
- 55 to 125 °C for all packages
PIN ASSIGNMENT
B С LT BL LE/ STROBE D A VSS 01 02 03 04 05 06 07 08 16 15 14 13 12 11 10 09 VDD f g a b c d e w w w
