KL2822M Datasheet - IK Semiconductor

KL2822M, Dual Low - Voltage Power Amplifier

TECHNICAL DATA Dual Low - Voltage Power Amplifier KL2822M .
The KL2822M is a monolithic integrated circuit in 8 lead mini DIP package.

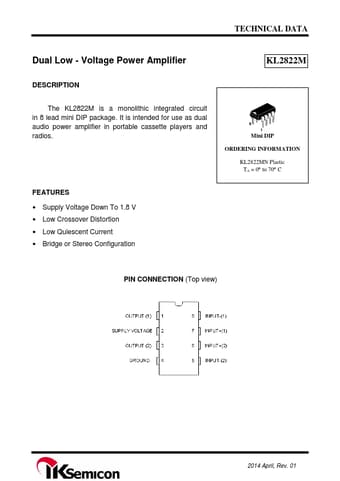

datasheet Preview Page 1 from Datasheet4u.com

KL2822M-IKSemiconductor.pdf

KL2822M Datasheet Preview — Preview of KL2822M PDF

Datasheet Details

Part number:

KL2822M

Manufacturer:

IK Semiconductor

File Size:

263.18 KB

Description:

Dual Low - Voltage Power Amplifier

Features

* Supply Voltage Down To 1.8 V
* Low Crossover Distortion
* Low Quiescent Current
* Bridge or Stereo Configuration PIN CONNECTION (Top view) 2014 April, Rev. 01 SCHEMATIC DIAGRAM KL2822M +Vs 2 D3 Q6 I REE D9 Q22 Q1 Q5 +Vs D4 OUT 1 Q2 Q4 С1 D1 D2 Q3 Q7 GND 4 Io CONTROL
