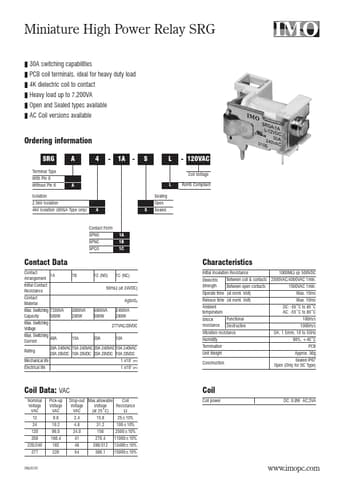

SRG-1A-L-120VAC Miniature High Power Relay

Miniature High Power Relay SRG ❚ 30A switching capabilities ❚ PCB coil terminals, ideal for heavy duty load ❚ 4K dielectric coil to contact ❚ Heavy load up to 7,200VA ❚ Open and Sealed types available ❚ AC Coil versions available Ordering information SRG Terminal Type With Pin 6 Without Pin 6 A 4 - 1A - S L - 120VAC Coil Voltage A Sealing Open Sealed L RoHS Compliant Isolation 2.5kV Isolation 4kV Isolation (SRGA Type only) 4 S Contact Form SPNO SPNC SPCO 1A 1B 1C Contact Data C.
