IMP37 - Low Dropout Positiv Voltage Regulators

IMP Inc

📥 Download Datasheet

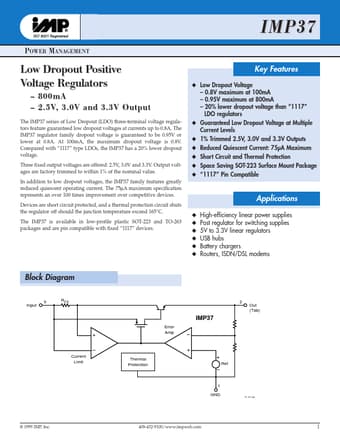

IMP37 Datasheet Preview — Preview of IMP37 PDF

Datasheet Details

Part number: IMP37
Manufacturer: IMP Inc
File Size: 270.54 KB
Datasheet: IMP37_IMPInc.pdf
Description: Low Dropout Positiv Voltage Regulators

IMP37 Product details

Description

Pin Number 1 2 3 TAB Package Marking Code Name GND OUT INPUT TAB Function Ground Pin Output Voltage Input Voltage Output Voltage 37_Table03.eps Part Number IMP37-25JST IMP37-30JST IMP37-33JST IMP37-25JCM IMP37-30JCM IMP37-33JCM Package SOT-223 SOT-223 SOT-223 TO-263 TO-263 TO-263 Device Marking 3725 3730 3733 3725JCM 3730JCM 3733JCM 37_Table05.eps Ordering Information Output Options Voltage 2.5V 3.0V 3.3V Part Ordering Number Dropout Voltage at 800mA 0.95V 0.95V 0.95V Maximum Quiescent

Features

greatly reduced quiescent operating current. The 75µA maximum specification represents an over 100 times improvement over competitive devices. Devices are short circuit protected, and a thermal protection circuit shuts the regulator off should the junction temperature exceed 165°C. The IMP37 is available in low-profile plastic SOT-223 and TO-263 packages and are pin compatible with fixed “1117” devices. Key Features x Low Dropout Voltage.
0.8V maximum at 100mA.
0.95V maximum a.
