IMP706REPA, 3/3.3/4.0V P SUPERVISOR CIRCUITS

IMP706P/R/S/T/J, IMP708R/S/T/J POWER MANAGEMENT 3/3.3/4.0V µP Supervisor Circuits * * * Lo w suppl y cur r ent Watc hdog time.

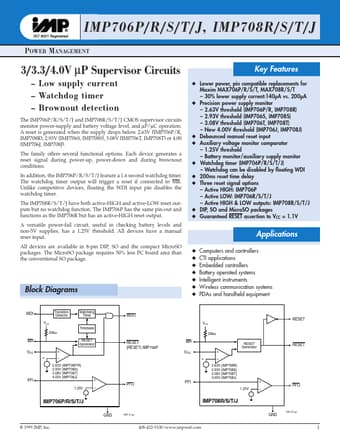

datasheet Preview Page 1 from Datasheet4u.com

IMP706REPA_IMPInc.pdf

IMP706REPA Datasheet Preview — Preview of IMP706REPA PDF

Datasheet Details

Part number:

IMP706REPA

Manufacturer:

IMP Inc

File Size:

229.02 KB

Description:

3/3.3/4.0V P SUPERVISOR CIRCUITS

Features

* N Lower power, pin compatible replacements for Maxim MAX706P/R/S/T, MAX708R/S/T
* 30% lower supply current:140µA vs. 200µA N Precision power supply monitor
* 2.63V threshold (IMP706P/R, IMP708R)
* 2.93V threshold (IMP706S, IMP708S)
* 3.08V threshold (IMP706T, IMP708T)

Applications

* N N N N N N N Computers and controllers CTI applications Embedded controllers Battery operated systems Intelligent instruments Wireless communication systems PDAs and handheld equipment Block Diagrams WDI VCC Timebase 20kΩ Transition Detector Watchdog Timer WDO VCC 20kΩ RESET MR VCC + +
