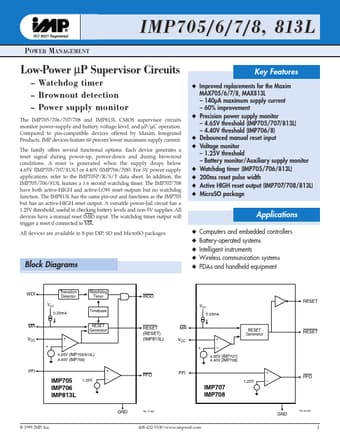

IMP707EPA LOW-POWER P SUPERVISOR CIRCUITS

Pin Number IMP705/706 IMP707/708 IMP813L DIP/SO MicroSO DIP/SO MicroSO DIP/SO MicroSO Name 1 2 3 4 5 3 4 5 6 7 1 2 3 4 5 3 4 5 6 7 1 2 3 4 5 3 4 5 6 7 MR VCC GND PFI PFO Function Manual RESET input. The active LOW input triggers a reset pulse. A 250µA pull-up current allows the pin to be driven by.

IMP707EPA Features

* N Improved replacements for the Maxim MAX705/6/7/8, MAX813L

* 140µA maximum supply current

* 60% improvement N Precision power supply monitor

* 4.65V threshold (IMP705/707/813L)

* 4.40V threshold (IMP706/8) N Debounced manual reset input N Voltage monitor

* 1.
