2SC4233 NPN Transistor

INCHANGE

Description

isc Silicon NPN Power Transistor INCHANGE Semiconductor 2SC4233 .
Collector-Emitter Sustaining Voltage- : VCEO(SUS)= 800V(Min). Fast Switching speed. 100% avalanche tested. Minimum Lot-to-Lot variati.

📥 Download Datasheet

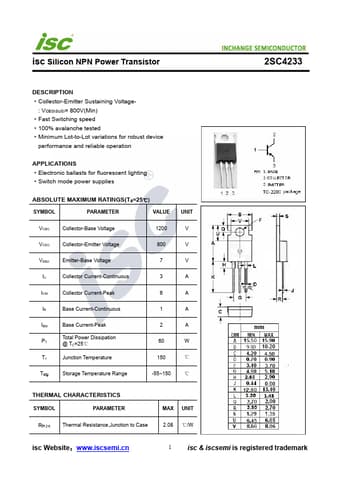

2SC4233 Datasheet Preview — Preview of 2SC4233 PDF

Datasheet Specifications

Part number: 2SC4233
Manufacturer: INCHANGE
File Size: 180.77 KB
Datasheet: 2SC4233-INCHANGE.pdf
Description: NPN Transistor

Applications

* Electronic ballasts for fluorescent lighting
* Switch mode power supplies ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT VCBO Collector-Base Voltage 1200 V VCEO Collector-Emitter Voltage 800 V VEBO Emitter-Base Voltage 7 V IC Collector Current-Continuous 3
