2SC4236 Datasheet - INCHANGE

2SC4236, NPN Transistor

isc Silicon NPN Power Transistor .
Collector-Emitter Sustaining Voltage- : VCEO(SUS)= 800V(Min). Fast Switching speed. 100% avalanche tested. Minimum Lot-to-Lot variati.

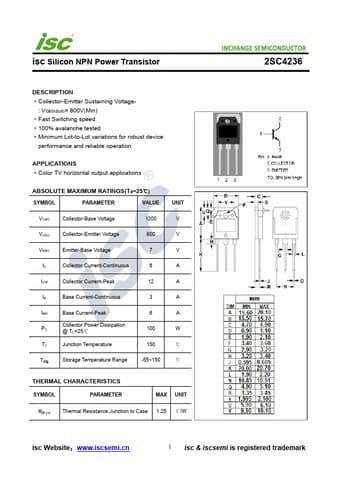

datasheet Preview Page 1 from Datasheet4u.com

2SC4236-INCHANGE.pdf

2SC4236 Datasheet Preview — Preview of 2SC4236 PDF

Datasheet Details

Part number:

2SC4236

Manufacturer:

INCHANGE

File Size:

184.84 KB

Description:

NPN Transistor

Applications

* Color TV horizontal output applications ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT VCBO Collector-Base Voltage 1200 V VCEO Collector-Emitter Voltage 800 V VEBO Emitter-Base Voltage 7 V IC Collector Current-Continuous 6 A ICM Collector Current-Peak 12 A
