2SK2424 N-Channel MOSFET

2SK2424 Description

isc N-Channel MOSFET Transistor .
Drain Current ID= 8A@ TC=25℃. Drain Source Voltage- : VDSS= 450V(Min). Fast Switching Speed. Minimum Lot-to-Lot variations for robust.

2SK2424 Applications

* Switching Regulators
* DC-DC Converter,
* Motor Control ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL ARAMETER VALUE UNIT VDSS Drain-Source Voltage (VGS=0) 450 V VGS Gate-Source Voltage ±30 V ID Drain Current-continuous@ TC=25℃ 8 A ID(puls) Pulsed Drain Current 32 A Ptot Tot

📥 Download Datasheet

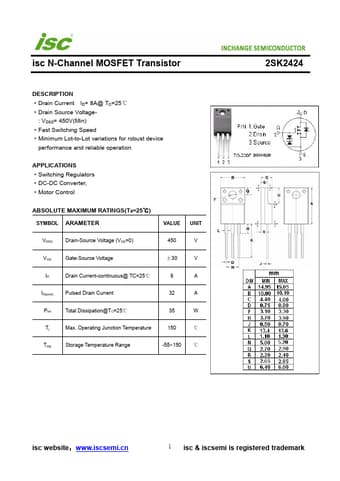

Preview of 2SK2424 PDF
datasheet Preview Page 2

Datasheet Details

Part number
2SK2424
Manufacturer
INCHANGE
File Size
186.42 KB
Datasheet
2SK2424-INCHANGE.pdf
Description
N-Channel MOSFET
