AOTF10N50FD - N-Channel MOSFET

Product Overview

INCHANGE

Datasheet Details

Part number	AOTF10N50FD
Manufacturer	INCHANGE
File Size	246.91 KB
Description	N-Channel MOSFET
Datasheet	AOTF10N50FD Datasheet

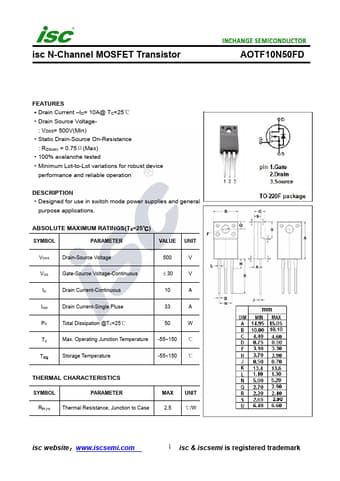

Additional preview pages of the AOTF10N50FD datasheet.

Product details

Description

Designed for use in switch mode power supplies and general purpose applications.ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT VDSS Drain-Source Voltage 500 V VGS Gate-Source Voltage-Continuous ±30 V ID Drain Current-Continuous 10 A IDM Drain Current-Single Pluse 33 A PD Total Dissipation @TC=25℃ 50 W TJ Max.Operating Junction Temperature -55~150 ℃ Tstg Storage Temperature -55~150 ℃ THERMAL CHARACTERISTICS SYMBOL PARAMETER Rth j-c Thermal Res

Features

Drain Current.
ID= 10A@ TC=25℃.
Drain Source Voltage- : VDSS= 500V(Min).
Static Drain-Source On-Resistance : RDS(on) = 0.75Ω(Max).
100% avalanche tested.
Minimum Lot-to-Lot variations for robust device performance and reliable operation.
