BT137-500E - Triacs

Datasheet Summary

Features

With TO-220 package.
Glass passivated triacs in a plasticenvelope, for use in general purposebidirectional switching and phase control.

INCHANGE

📥 Download Datasheet

Datasheet Details

Part number	BT137-500E
Manufacturer	INCHANGE
File Size	174.86 KB
Description	Triacs
Datasheet	BT137-500E Datasheet
Additional preview pages of the BT137-500E datasheet.

📁 Similar Datasheet

BT137-500E - Triacs (NXP)
BT137-500 - Triacs (NXP)
BT137-500 - TRIACS (Comset Semiconductors)
BT137-500D - Triacs logic level (NXP)
BT137-500F - Triacs (NXP)
BT137-500G - Triacs (NXP)
BT137-600 - 4 Quadrants Triacs (ADV)
BT137-600 - 4Q Triac (NXP)
BT137-600 - 8A TRIAC (KCD)
BT137-600 - Triacs (Inchange Semiconductor)

Other Datasheets by INCHANGE

BT137-600E - Triacs
BT137-600F - Triacs
BT137-800 - Triac
BT137-800F - Triac
BT137-800G - Triac
BT137 - Triac
BT137B-600E - Triacs
BT137S-600 - Thyristor

Full PDF Text Transcription

Click to expand full text

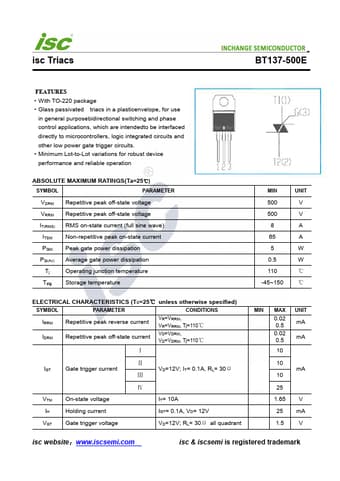

isc Triacs BT137-500E FEATURES ·With TO-220 package ·Glass passivated triacs in a plasticenvelope, for use in general purposebidirectional switching and phase control applications, which are intendedto be interfaced directly to microcontrollers, logic integrated circuits and other low power gate trigger circuits. ·Minimum Lot-to-Lot variations for robust device performance and reliable operation ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VDRM Repetitive peak off-state voltage VRRM Repetitive peak off-state voltage IT(RMS) RMS on-state current (full sine wave) ITSM Non-repetitive peak on-state current PGM Peak gate power dissipation PG(AV) Average gate power dissipation Tj Operating junction temperature Tstg Storage temperature MIN 500 500 8 65 5 0.

Published: Sep 15, 2020 |
