BT258X-800R - Thyristors

Datasheet Summary

Description

With TO-220F packaging Long-term stability Thyristor for line frequency Planar passivated chip Minimum Lot-to-Lot variations for robust device performance and reliable operation APPLICATIONS Switching applications Line rectifying 50/60 Hz ABSOLUTE MAXIMUM RATINGS(

INCHANGE

📥 Download Datasheet

Datasheet Details

Part number	BT258X-800R
Manufacturer	INCHANGE
File Size	156.36 KB
Description	Thyristors
Datasheet	BT258X-800R Datasheet

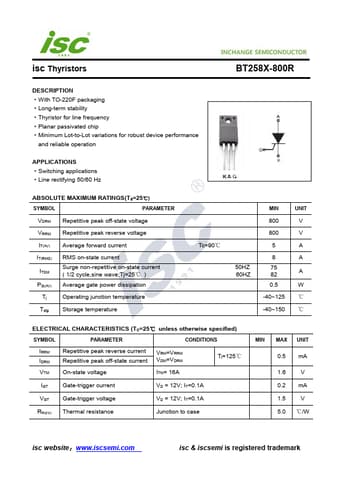

Additional preview pages of the BT258X-800R datasheet.

📁 Similar Datasheet

BT258X-800R - Thyristors logic level (NXP)
BT258X-800R - Thyristor (WeEn)
BT258X-500R - Thyristors logic level (NXP)
BT258X-500R - Thyristor (WeEn)
BT258X-600R - Thyristors logic level (NXP)
BT258X-600R - Thyristor (WeEn)
BT258X - Thyristors logic level (NXP)
BT258 - Thyristors logic level (NXP)
BT258 - SCRs (HAOPIN)
BT258-500R - Thyristors logic level (NXP)

Other Datasheets by INCHANGE

BT258S-800R - Thyristors

Full PDF Text Transcription

Click to expand full text

isc Thyristors BT258X-800R DESCRIPTION ·With TO-220F packaging ·Long-term stability ·Thyristor for line frequency ·Planar passivated chip ·Minimum Lot-to-Lot variations for robust device performance and reliable operation APPLICATIONS ·Switching applications ·Line rectifying 50/60 Hz ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VDRM Repetitive peak off-state voltage VRRM Repetitive peak reverse voltage IT(AV) Average forward current IT(RMS) ITSM PG(AV) RMS on-state current Surge non-repetitive on-state current ( 1/2 cycle,sine wave;Tj=25℃ ) Average gate power dissipation Tj Operating junction temperature Tstg Storage temperature Tc=90℃ 50HZ 60HZ MIN 800 800 5 8 75 82 0.
