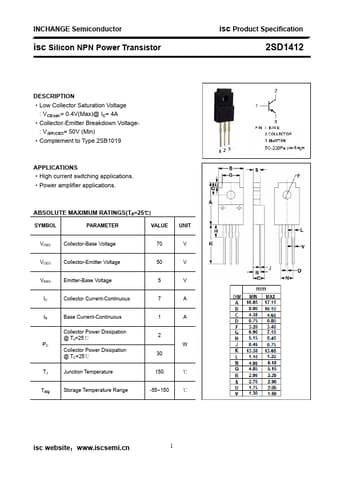

D1412 Datasheet, Transistor, INCHANGE

PDF File Details

Part number:

D1412

Manufacturer:

INCHANGE

File Size:

131.25kb

Download:

📄 Datasheet

Description:

Silicon npn power transistor.

Low Collector Saturation Voltage : VCE(sat)= 0.4V(Max)@ IC= 4A

Collector-Emitter Breakdown Voltage- : V(BR)CEO= 50V

D1412 Application

• Applications
• High current switching applications.
• Power amplifier applications. ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMET
