D45H2A PNP Transistor

D45H2A Description

isc Silicon PNP Power Transistors .
Low Collector-Emitter Saturation Voltage : VCE(sat)= 1. Fast Switching Speeds. Minimum Lot-to-Lot variations for robust.

D45H2A Applications

* This device is designed for power amplifier,regulator and Switching circuits where speed is important ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT VCEO Collector-Emitter Voltage -30 V VEBO Emitter-Base Voltage -5 V IC Collector Current-Continuous -8 A ICM Coll

📥 Download Datasheet

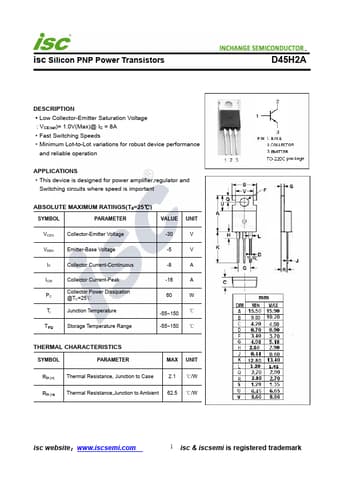

Preview of D45H2A PDF
datasheet Preview Page 2

Datasheet Details

Part number
D45H2A
Manufacturer
INCHANGE
File Size
191.01 KB
Datasheet
D45H2A-INCHANGE.pdf
Description
PNP Transistor
