DF100AA120 DF100AA120

INCHANGE

DF100AA120 Description

DF100AA120 Three Phases Rectifying Bridge Module .

DF100AA120 Features

* The chips are electrically insulated from bosom plate ,2500V AC voltage
* High surge current
* Low forward voltage drop

DF100AA120 Applications

* AC, DC Motor Drive/AVR/Switching for three phase rectification ABSOLUTE MAXIMUM RATINGS SYMBOL PARAMETER VRRM Repetitive Peak Reverse Voltage IO Output Current (D. C) IFSM Surge Forward Current I2t I2t for fusing Viso Maximum Power Dissipation TJ Junction Temperature Tstg Storage

📥 Download Datasheet

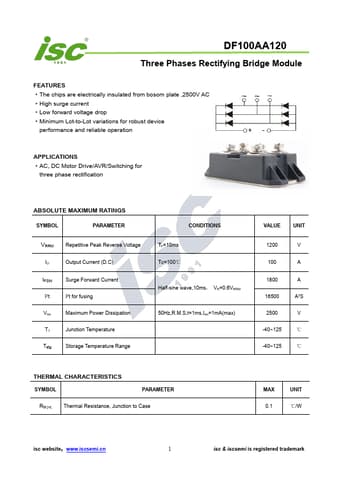

DF100AA120 Datasheet Preview — Preview of DF100AA120 PDF

Datasheet Details

Part number: DF100AA120
Manufacturer: INCHANGE
File Size: 291.19 KB
Datasheet: DF100AA120-INCHANGE.pdf
Description: DF100AA120
