DJR0417 Datasheet, Mosfet, INCHANGE

DJR0417 Features

  • Mosfet
  • Drain Current
      –ID=-17A@ TC=25℃
  • Drain Source Voltage- : VDSS=-40V(Min)
  • Static Drain-Source On-Resistance : RDS(on) =75mΩ(Max)
  • 100% ava

PDF File Details

Part number:

DJR0417

Manufacturer:

INCHANGE

File Size:

261.18kb

Download:

📄 Datasheet

Description:

P-channel mosfet.

  • Designed for use in switch mode power supplies and general purpose applications. ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL

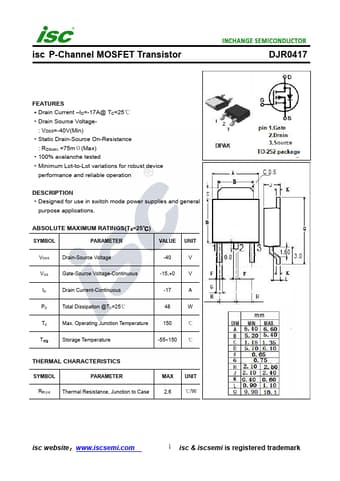

  • Datasheet Preview: DJR0417 📥 Download PDF (261.18kb)
    Page 2 of DJR0417

    DJR0417 Application

    • Applications ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT VDSS Drain-Source Voltage -40 V VGS Gate-Source Voltage-Continu
