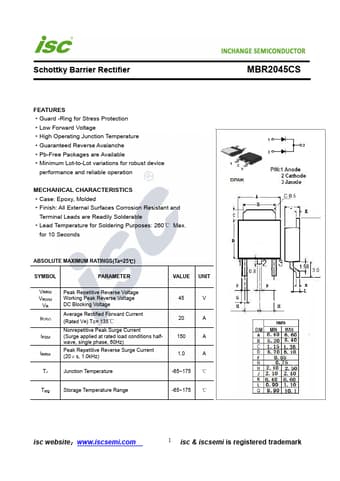

MBR2045CS
FEATURES
- Guard -Ring for Stress Protection
- Low Forward Voltage
- High Operating Junction Temperature
- Guaranteed Reverse Avalanche
- Pb-Free Packages are Available
- Minimum Lot-to-Lot variations for robust device performance and reliable operation
MECHANICAL CHARACTERISTICS
- Case: Epoxy, Molded
- Finish: All External Surfaces Corrosion Resistant and
Terminal Leads are Readily Solderable
- Lead Temperature for Soldering Purposes: 260℃ Max. for 10 Seconds
ABSOLUTE MAXIMUM RATINGS(Ta=25℃)
SYMBOL
PARAMETER
VALUE UNIT
VRRM VRWM
Peak Repetitive Reverse Voltage Working Peak Reverse Voltage DC Blocking Voltage
IF(AV)
Average Rectified Forward Current
(Rated VR) TC= 135℃
Nonrepetitive Peak Surge Current
IFSM
(Surge applied at rated load conditions half-
A wave, single phase, 60Hz)
IRRM
Peak Repetitive Reverse Surge Current (20μs, 1.0k Hz)
Junction Temperature
-65~175 ℃
Tstg
Storage Temperature Range
-65~175 ℃ isc website：.iscsemi.
