NTE2393 - N-Channel MOSFET

Datasheet Summary

Features

  • With TO-3PN packaging.
  • High speed switching.
  • Standard level gate drive.
  • Easy to use.
  • 100% avalanche tested.
  • Minimum Lot-to-Lot variations for robust device performance and reliable operation.

📥 Download Datasheet

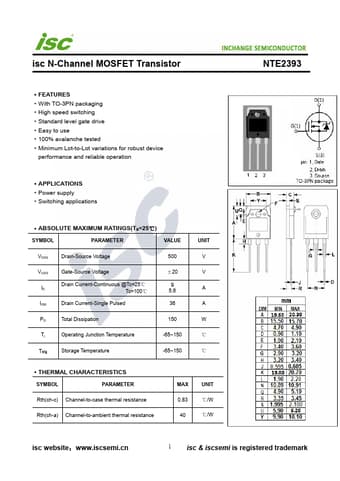

Datasheet preview – NTE2393

Datasheet Details

Part number NTE2393
Manufacturer INCHANGE
File Size 205.99 KB
Description N-Channel MOSFET
Datasheet download datasheet NTE2393 Datasheet
Additional preview pages of the NTE2393 datasheet.

📁 Similar Datasheet

  • NTE2393 - N-CHANNEL MOSFET (NTE)
  • NTE239 - Silicon Controlled Switch (NTE)
  • NTE2390 - N-Channel Enhancement Mode MOSFET (NTE)
  • NTE2392 - N-CHANNEL MOSFET (NTE)
  • NTE2394 - N-CHANNEL MOSFET (NTE)
  • NTE2395 - N-CHANNEL MOSFET (NTE)
  • NTE2396 - N-CHANNEL MOSFET (NTE)
  • NTE2397 - N-CHANNEL MOSFET (NTE)
  • NTE2398 - N-CHANNEL MOSFET (NTE)
  • NTE2399 - N-CHANNEL MOSFET (NTE)
Other Datasheets by INCHANGE

Full PDF Text Transcription

Click to expand full text
isc N-Channel MOSFET Transistor INCHANGE Semiconductor NTE2393 ·FEATURES ·With TO-3PN packaging ·High speed switching ·Standard level gate drive ·Easy to use ·100% avalanche tested ·Minimum Lot-to-Lot variations for robust device performance and reliable operation ·APPLICATIONS ·Power supply ·Switching applications ·ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE VDSS Drain-Source Voltage 500 VGSS ID IDM Gate-Source Voltage Drain Current-Continuous @Tc=25℃ Tc=100℃ Drain Current-Single Pulsed ±20 9 5.
