SBR10U60CT - Schottky Barrier Rectifier

Datasheet Summary

Features

  • Low Forward Voltage Drop.
  • Excellent High Temperature Stability.
  • Soft, Fast Switching Capability.
  • 100% tested.
  • Minimum Lot-to-Lot variations for robust device performance and reliable operation.

📥 Download Datasheet

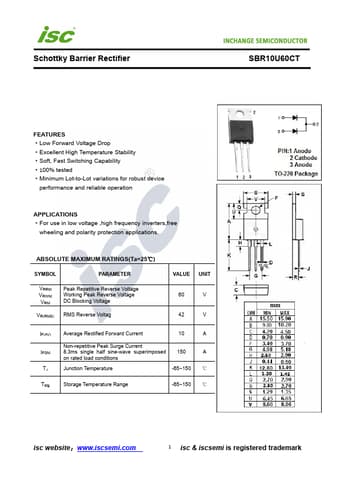

Datasheet preview – SBR10U60CT

Datasheet Details

Part number SBR10U60CT
Manufacturer INCHANGE
File Size 203.43 KB
Description Schottky Barrier Rectifier
Datasheet download datasheet SBR10U60CT Datasheet
Additional preview pages of the SBR10U60CT datasheet.

📁 Similar Datasheet

Other Datasheets by INCHANGE

Full PDF Text Transcription

Click to expand full text
Schottky Barrier Rectifier SBR10U60CT FEATURES ·Low Forward Voltage Drop ·Excellent High Temperature Stability ·Soft, Fast Switching Capability ·100% tested ·Minimum Lot-to-Lot variations for robust device performance and reliable operation APPLICATIONS ·For use in low voltage ,high frequency inverters,free wheeling and polarity protection applications. ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VRRM VRWM VRM VR(RMS) Peak Repetitive Reverse Voltage Working Peak Reverse Voltage DC Blocking Voltage RMS Reverse Voltag VALUE UNIT 60 V 42 V IF(AV) IFSM TJ Tstg Average Rectified Forward Current 10 A Non-repetitive Peak Surge Current 8.
