SBR30A45, Schottky Barrier Rectifier

Schottky Barrier Rectifier SBR30A45 .

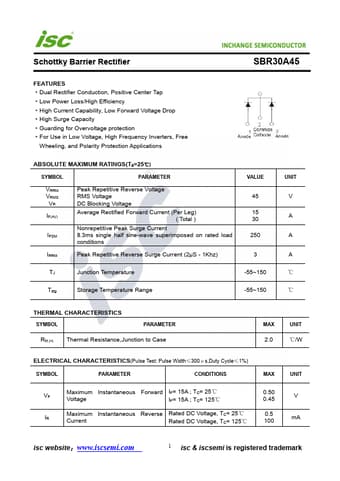

datasheet Preview Page 1 from Datasheet4u.com

SBR30A45-INCHANGE.pdf

SBR30A45 Datasheet Preview — Preview of SBR30A45 PDF

Datasheet Details

Part number:

SBR30A45

Manufacturer:

INCHANGE

File Size:

220.32 KB

Description:

Schottky Barrier Rectifier

Features

* Dual Rectifier Conduction, Positive Center Tap
* Low Power Loss/High Efficiency
* High Current Capability, Low Forward Voltage Drop
* High Surge Capacity
* Guarding for Overvoltage protection
* For Use in Low Voltage, High Frequency Inverters, Free Wheeling, and Polarity Protecti

Applications

* ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VRRM VRMS VR IF(AV) IFSM Peak Repetitive Reverse Voltage RMS Voltage DC Blocking Voltage Average Rectified Forward Current (Per Leg) ( Total ) Nonrepetitive Peak Surge Current 8.3ms single half sine-wave superimposed on rated load conditions IR
