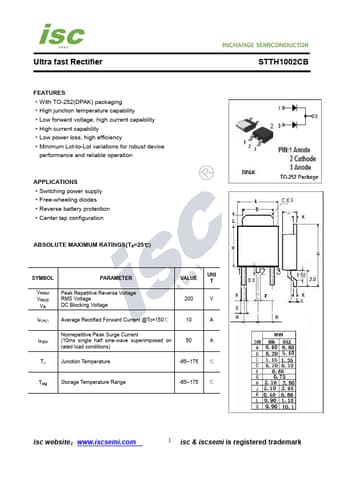

Ultra fast Rectifier
FEATURES ·With TO-252(DPAK) packaging ·High junction temperature capability ·Low forward voltage, high current capability ·High current capability ·Low power loss, high efficiency ·Minimum Lot-to-Lot variations for robust device
performance and reliable operation
APPLICATIONS ·Switching power supply ·Free-wheeling diodes ·Reverse battery protection ·Center tap configuration
ABSOLUTE MAXIMUM RATINGS(Ta=25℃)
SYMBOL
PARAMETER
VRRM VRMS
VR
Peak Repetitive Reverse Voltage RMS Voltage DC Blocking Voltage
IF(AV) Average Rectified Forward Current @Tc=150℃
VALUE
UNI T
200
V
10
A
Nonrepetitive Peak Surge Current
IFSM
(10ms single half sine-wave superimposed on
50
A
rated load conditions)
TJ
Junction Temperature
-65~175 ℃
Tstg
Storage Temperature Range
-65
