SUK3015

N-Channel MOSFET

SUK3015 Features

* Drain Current

* ID= 15A@ TC=25℃

* Drain Source Voltage- : VDSS= 300V(Min)

* Static Drain-Source On-Resistance : RDS(on) = 150mΩ(Max)

* 100% avalanche tested

* Minimum Lot-to-Lot variations for robust device performance and reliable operation DESCRIPTION

* Designed for use

SUK3015 General Description


*Designed for use in switch mode power supplies and general purpose applications. ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT VDSS Drain-Source Voltage 300 V VGS Gate-Source Voltage-Continuous ±25 V ID Drain Current-Continuous 15 A IDM Drain Current-Single Plus.

SUK3015 Datasheet (250.81 KB)

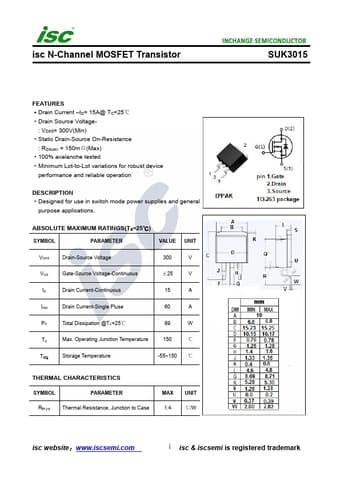

Preview of SUK3015 PDF

Datasheet Details

Part number:

SUK3015

Manufacturer:

INCHANGE

File Size:

250.81 KB

Description:

N-channel mosfet.
