LA8522A

Step Down DC-DC Converter

LA8522A Features

* of current limit, thermal shutdown protection, and short circuit protection are also included. Due to the low RDS(ON) of the internal power MOSFET, this device provides high efficiency step-down applications. It can also operate with a maximum duty cycle of 100% for use in low drop-out conditions. T

LA8522A General Description

LA8522A is a voltage mode, step-down DC-DC converter that is designed to meet 2A output current, and utilizes PWM control scheme that switches with 300KHz fixed frequency. The input voltage range of LA8522A is from 3.6V to 23V, and available in adjustable output voltage from 0.8V to VIN. The supply .

LA8522A Datasheet (488.69 KB)

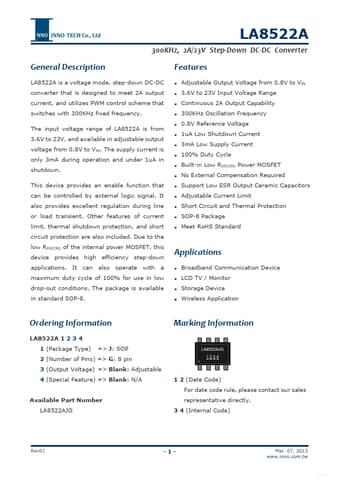

Preview of LA8522A PDF

Datasheet Details

Part number:

LA8522A

Manufacturer:

INNO-TECH

File Size:

488.69 KB

Description:

Step down dc-dc converter.
