IECS0505C040FR Datasheet - INNOCHIPS

IECS0505C040FR ESD CLAMP

ITEM ESD CLAMP P/N IECS0505C040FR Page 1 Data Sheet - ITEM -PART NO : ESD CLAMP : IECS0505C040FR ITEM ESD CLAMP P/N IECS0505C040FR Page 2 1. SCOPE ◈ ESD Clamps are specifically designed to protect sensitive devices against the threat of electrostatic discharge (ESD) and are well suited for high speed applications where low capacitance is needed. (HDMI and USB port devices using transmission line of high-speed signal) These components are aimed to protect the circuits from electrostatic .

IECS0505C040FR Features

* ◈ Ultra-low capacitance ◈ Bi-directional regardless of polarity ◈ Excellent characteristics for differential signaling data lines in various digital appliances ◈ Fast response time ◈ Very low leakage current ◈ SMD Type ◈ Withstands multiple ESD strikes. 3. APPLICATION ◈ LVDS Lines in Notebook PC (US

IECS0505C040FR Datasheet (305.52 KB)

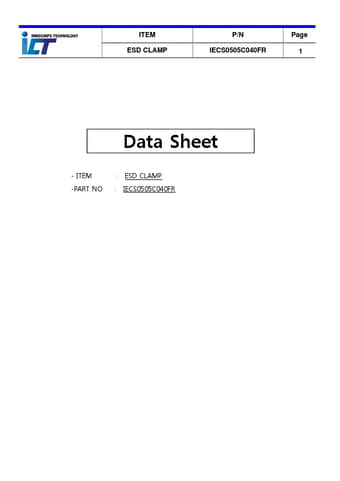

Preview of IECS0505C040FR PDF
IECS0505C040FR Datasheet Preview Page 2 IECS0505C040FR Datasheet Preview Page 3

Datasheet Details

Part number:

IECS0505C040FR

Manufacturer:

INNOCHIPS

File Size:

305.52 KB

Description:

Esd clamp.
