G121S1-L02 Datasheet - INNOLUX

G121S1-L02 TFT LCD

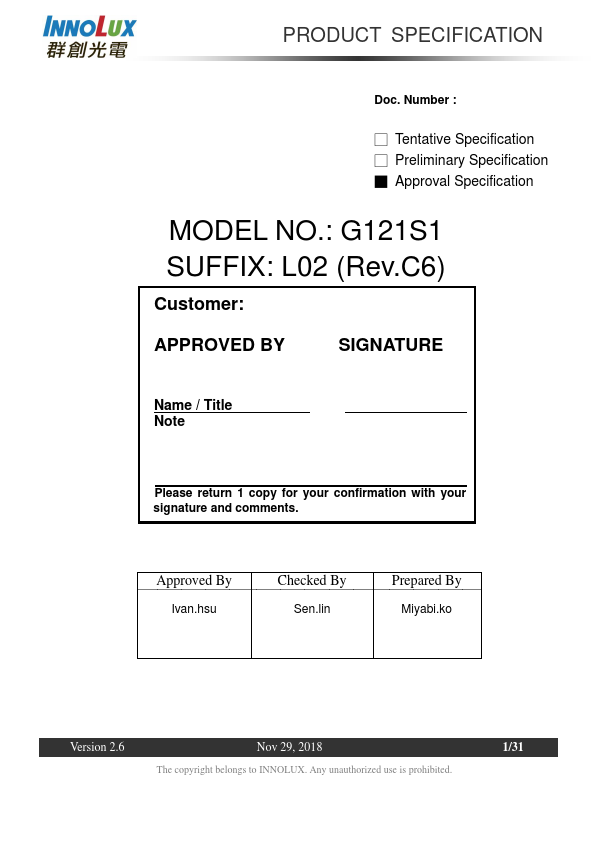

PRODUCT SPECIFICATION Doc. Number : Tentative Specification Preliminary Specification Approval Specification MODEL NO.: G121S1 SUFFIX: L02 (Rev.C6) Customer: APPROVED BY SIGNATURE Name / Title Note Please return 1 copy for your confirmation with your signature and comments. Approved By Ivan.hsu Checked By Sen.lin Prepared By Miyabi.ko Version 2.6 Version 2.0 Nov 29, 2018 1/31 The copyright belongs to INNOLUX. Any unauthorized use is prohibited. 19 Septembe.

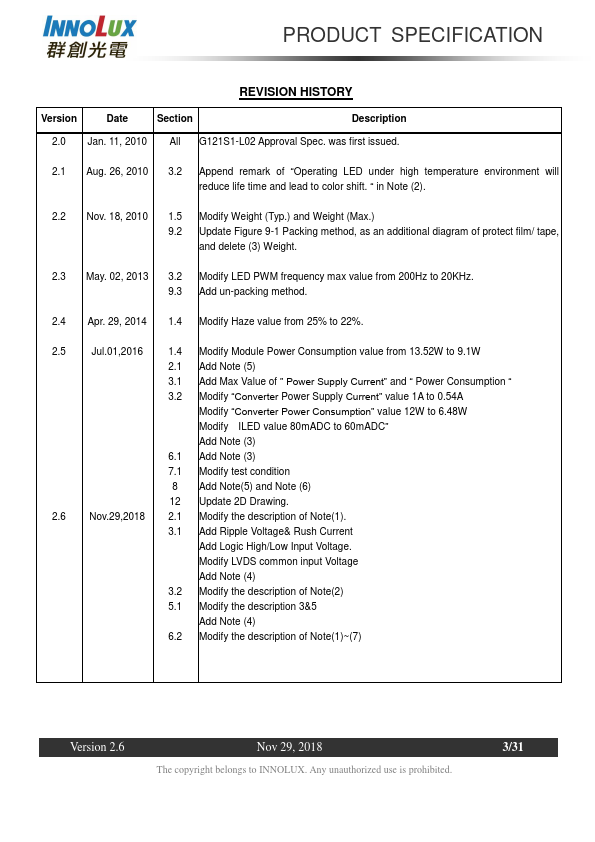

G121S1-L02 Features

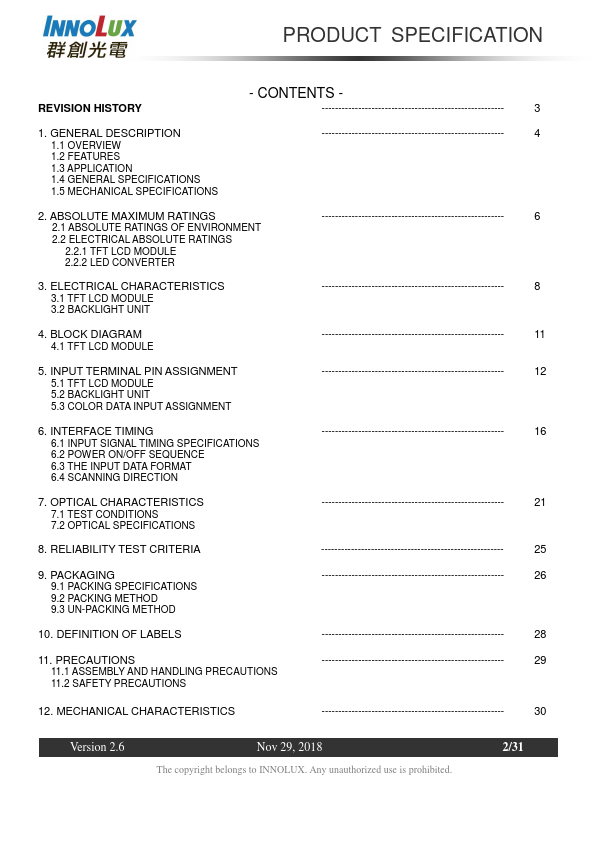

* 1.3 APPLICATION 1.4 GENERAL SPECIFICATIONS 1.5 MECHANICAL SPECIFICATIONS 2. ABSOLUTE MAXIMUM RATINGS 2.1 ABSOLUTE RATINGS OF ENVIRONMENT 2.2 ELECTRICAL ABSOLUTE RATINGS 2.2.1 TFT LCD MODULE 2.2.2 LED CONVERTER 3. ELECTRICAL CHARACTERISTICS 3.1 TFT LCD MODULE 3.2 BACKLIGHT UNIT 4. BLOCK DIAGRAM 4.1 T
