MCB1005S102FBP, MCB0603B800FBP - Chip Ferrite Bead

📥 Download Datasheet

MCB1005S102FBP Datasheet Preview — This datasheet PDF includes multiple part numbers: MCB1005S102FBP, MCB0603B800FBP. Please refer to the document for exact specifications by model.

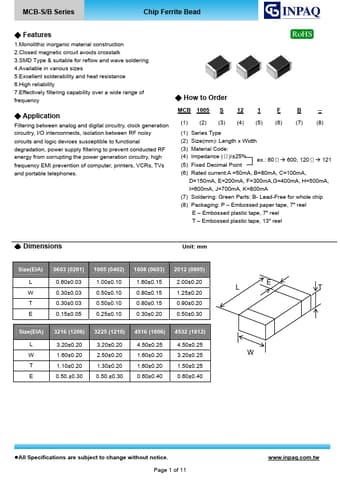

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	MCB1005S102FBP, MCB0603B800FBP
Manufacturer	INPAQ
File Size	846.15 KB
Description	Chip Ferrite Bead
Datasheet	MCB0603B800FBP-INPAQ.pdf
Note	This datasheet PDF includes multiple part numbers: MCB1005S102FBP, MCB0603B800FBP. Please refer to the document for exact specifications by model.

MCB1005S102FBP Product details

Features

s Chip Ferrite Bead 1.Monolithic inorganic material construction 2.Closed magnetic circuit avoids crosstalk 3.SMD Type & suitable for reflow and wave soldering 4.Available in various sizes 5.Excellent solderability and heat resistance 6.High reliability 7.Effectively filtering capability over a wide range of frequency.
How to Order MCB (1) (1) (2) (3) (4) 1005 (2) S (3) 12 (4) 1 (5) F (6) B (7) -(8).
