* Ø Monolithic inorganic material construction Ø Closed magnetic circuit avoids crosstalk Ø SMD Type & suitable for reflow and wave soldering Ø Available in various sizes Ø Excellent solderability and heat resistance Ø High reliability Ø Effectively filtering capability over a wide range of frequency
MCB2012S600KBP Datasheet (1.59 MB)
MCB2012S600KBP
INPAQ
1.59 MB

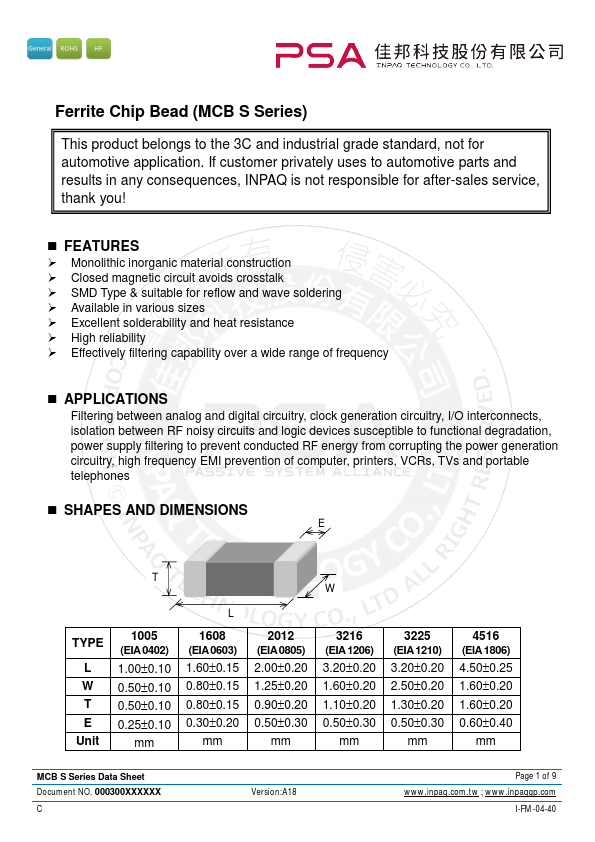

Ferrite chip bead.

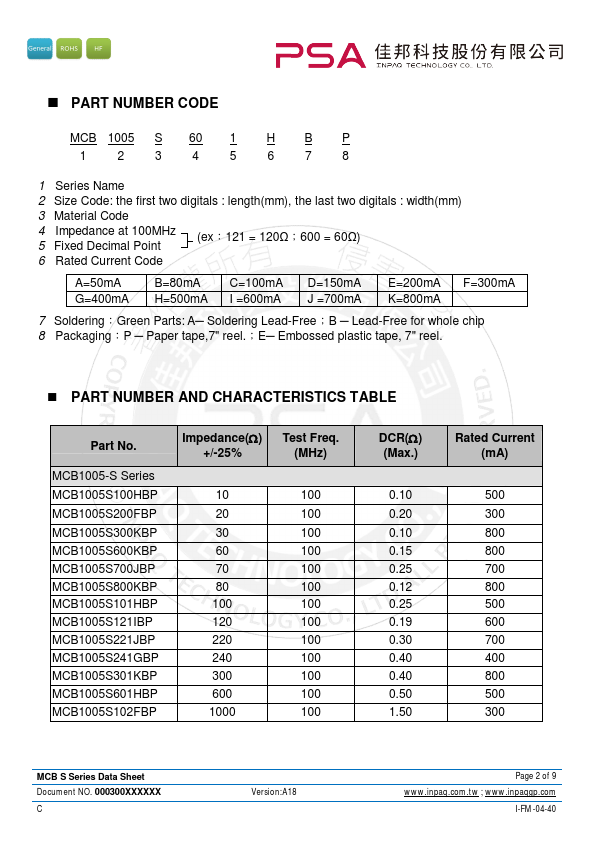

MCB S Series Data Sheet Product Name Series Size Version MCB S Series Ferrite Chip Bead EIAJ 1005 - 4516 A18 Ferrite Chip Bead (MCB S Series) This .
